Quality in series production

High standards for premium products

Our commitment to perfect product quality

Detailed quality planning and effective quality assurance are our core beliefs in the series production of products. We have a qualified team with special, fully air-conditioned measuring rooms and appropriate test and measuring equipment.

Industrial quality solutions

You can count on it

SITEC series production stands for excellent quality. To that, we carry out process development in accordance with DIN EN ISO 9001 or IATF 16949. Coordinated process monitoring ensures maximum performance at every stage of the production process. Product and process audits according to VDA 6.3 are also conducted for monitoring and optimization purposes.

Test methods

How we ensure flawless products

From visual inspection to microscopic testing, we safeguard and document the quality of serial products.

We also provide full traceability to guarantee end-to-end transparency in the production chain.

Geometrical testing

Visual inspection

Weld inspection

Roughness and contour inspection

Hardness and hardener flow testing

Leak testing

Burst testing

Geometrical testing

Using state-of-the-art coordinate measuring technology and GPS-enabled software, qualified QA personnel in an air-conditioned measuring room accurately record characteristics for analysis and monitoring of delivered raw parts and serial products.

Sophisticated sensor technology is used to detect deviations from specified geometric tolerances, ensuring comprehensive quality control and targeted optimization of production processes.

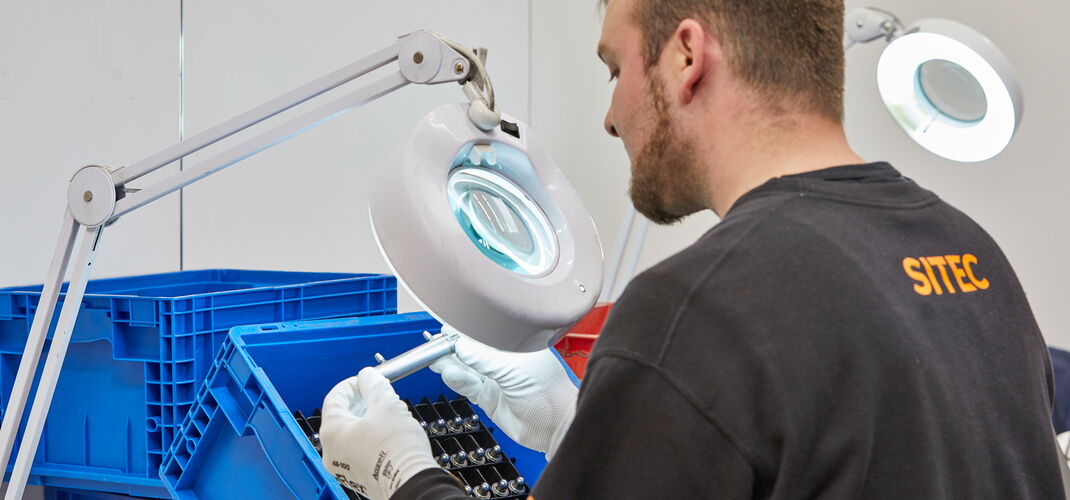

Visual inspection

Evaluation of surfaces and components for irregularities, such as mechanical damage, using:

  • Visual inspection without tools (normal vision)
  • Visual inspection with tools such as a microscope, endoscope, or magnifying glass

Weld inspection

Qualified personnel use a micrograph and a measuring microscope to verify compliance with the defined requirements for a weld cross section. At the same time, this inspection focuses on conformity with weld irregularity limits.

Rauheits- und Konturenprüfung

Durch Rauheits- und Konturenmessungen erfolgt die Qualitätsprüfung der Leistungsfähigkeit und Funktionalität der Oberflächen unserer Produkte. Durch den Einsatz spezieller Messgeräte analysieren wir die Oberflächenbeschaffenheit bis ins kleinste Detail.

Hardness and hardener profile testing

In the hardness and hardener profile testing, the material properties are examined by trained auditors at defined points and during the course of the test by trained specialists using a material micrograph. In addition to other possible hardness testing methods, SITEC focuses on the Vickers hardness test. This test, as well as the others mentioned here, guarantees a comprehensive quality control and targeted optimization of production processes.

Leak testing

By measuring welded components against leakage limits, the tightness of the weld can be verified. Various media such as helium or air are used.

Burst testing

In a bursting pressure test, a component is subjected to an appropriate load curve over time at a limiting pressure or to burst. Either the strength characteristics of the feedstock or the weld on the component are tested.
